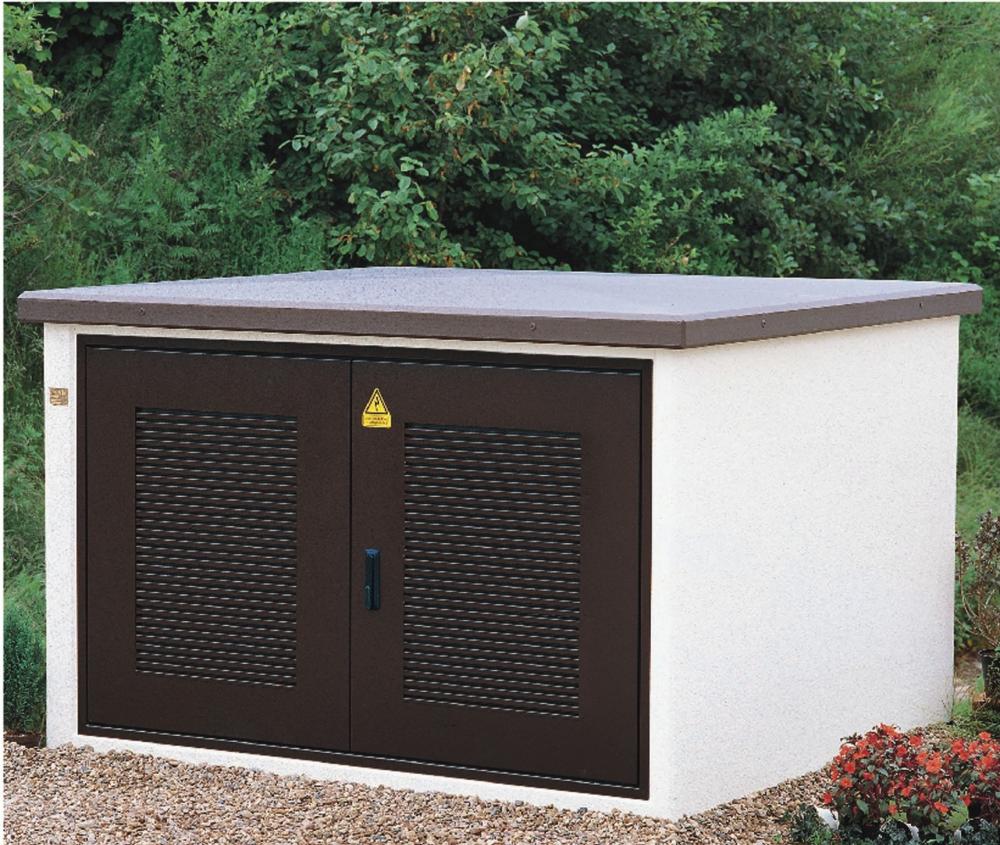

Substation NZ 210-290

NZ 210-290
  • Construction:  structural body, roof
  • Dimensions length, width, height: 2100 x 2900 x 2390 mm
  • Embedded in the ground: 800 mm
  • Built-up area: 14,56 m2
  • Weight: 7,65+1,66 t
  • HV switchgear: 2- 3 fields
  • Transformator: 150- 630 kVA
  • LV switchgear: RH 400 - 1600 A, 6 to 12 outlets
  • Measuring: HV or LV

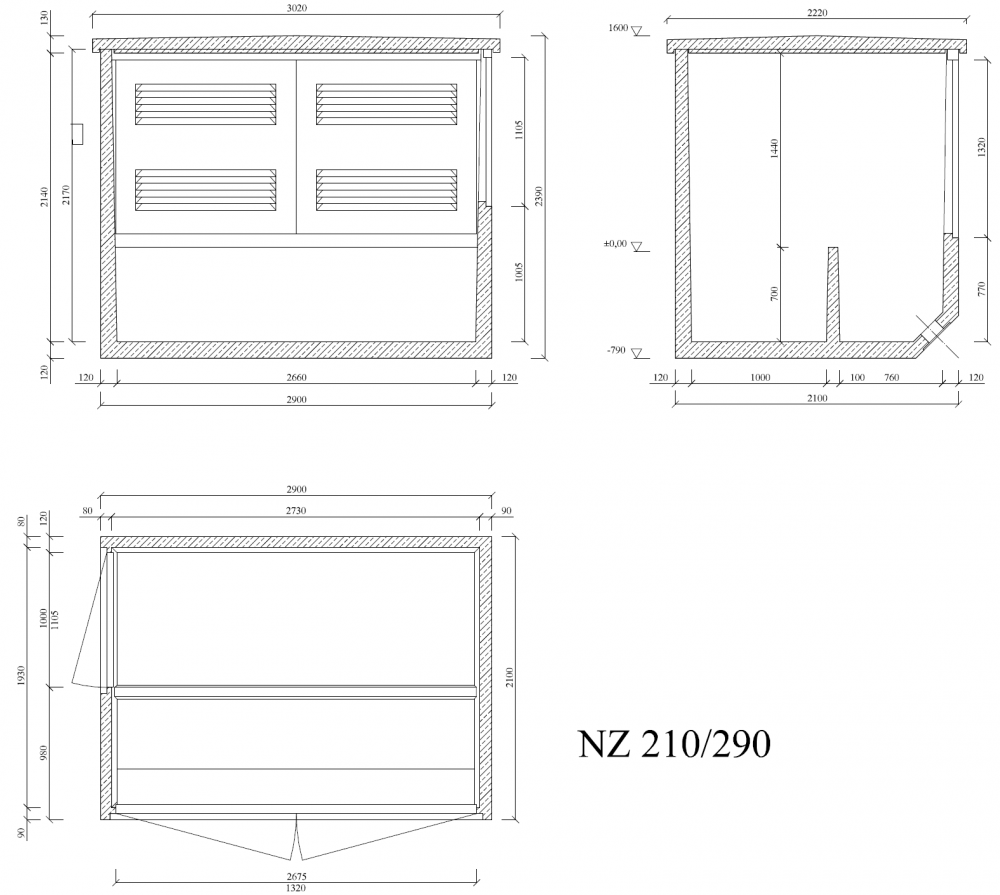

Certification Technical drawings

DWG | PDF
