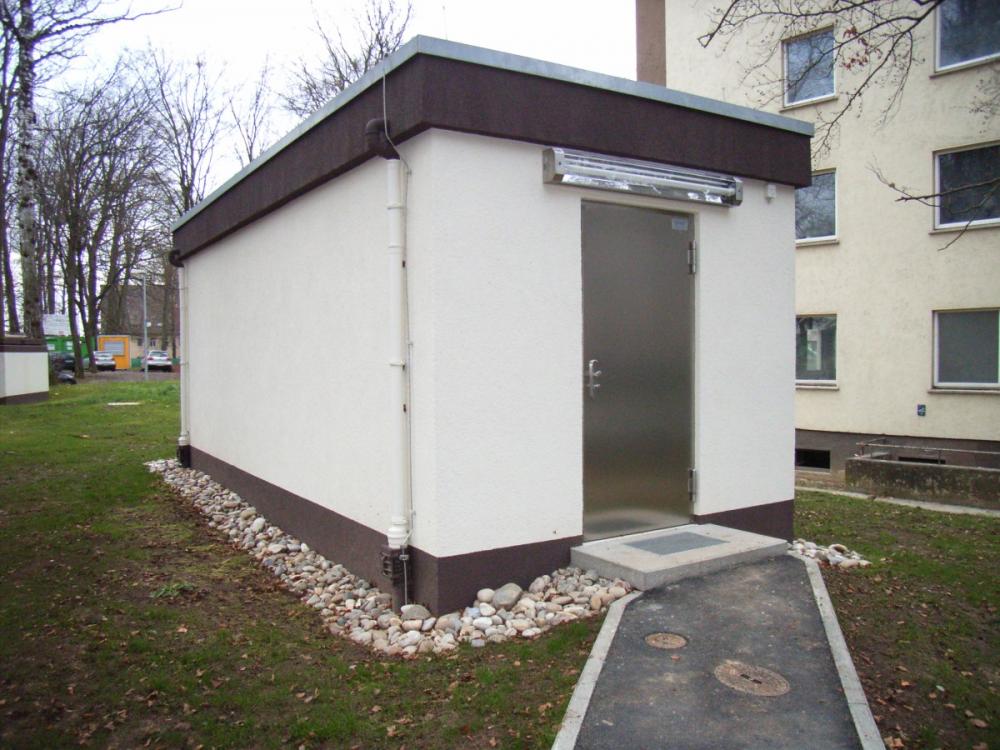

Substation BEK 300-500

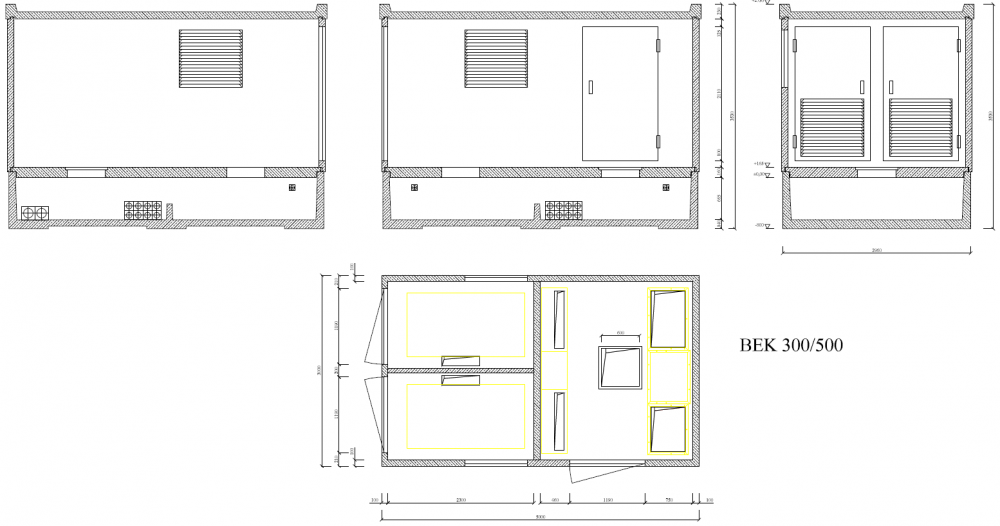

- Construction: cover cable, between floor, structural body, roof
- Dimensions length, width, height: 5000 x 3000 x 3530 mm
- Embedded in the ground: 800 mm
- Built-up area: 8,75 m2
- Weight: 21+6,2 t
- HV switchgear: 2- 6 fields
- Transformator: 2x 150- 1600 kVA
- LV switchgear: cabinet 400 - 2500 A, 6 to 18 outlets
- Measuring: HV or LV
